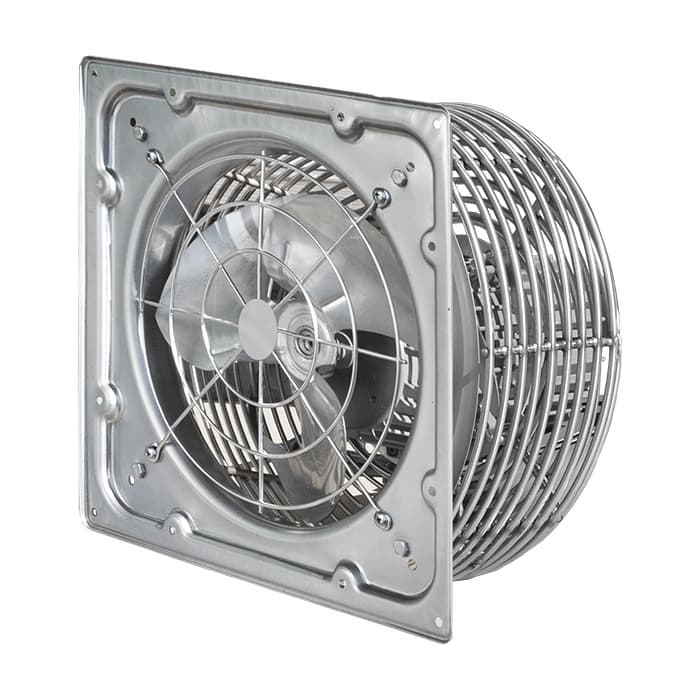

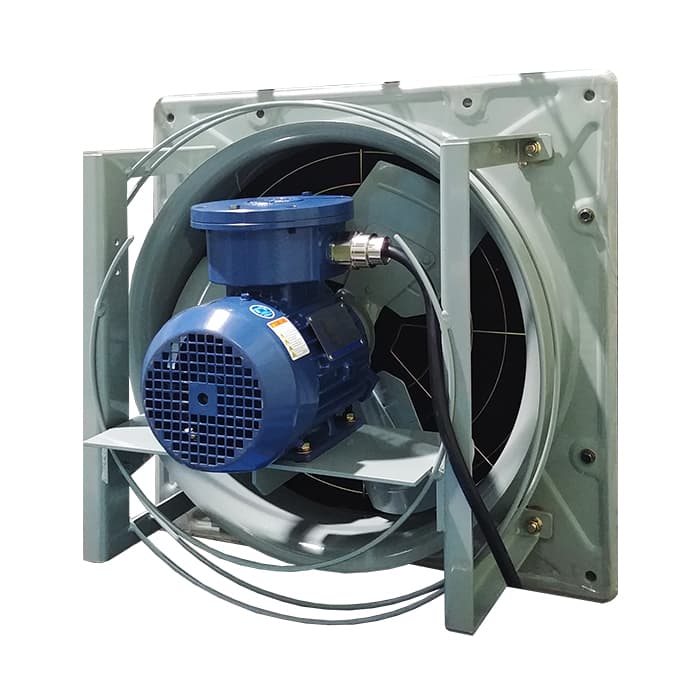

환기팬

제품 특징

Model No.	방폭인증번호	방폭등급	Impeller size (mm)	Max Air Volume (㎥/h)	Volt (V)	Poles (P)	Input (W)
DR-F30DSH	-	Exd ⅡB T4	300	1,980	1	220	400
DR-F30DTH	-	Exd ⅡB T4	300	1,980	3	220/380	400
DR-F35DSH	-	Exd ⅡB T4	350	2,900	1	220	400
DR-F35DTH	-	Exd ⅡB T4	350	2,900	3	220/380	400
DR-F40DSH	-	Exd ⅡB T4	400	4,320	1	220	400
DR-F40DTH	-	Exd ⅡB T4	400	4,320	3	220/380	400
DR-F45DSH	-	Exd ⅡB T4	450	7,600	1	220	400
DR-F45DTH	-	Exd ⅡB T4	450	7,600	3	220/380	400
DR-F50FSH	-	Exd ⅡB T4	500	11,000	1	220	750
DR-F50FTH	-	Exd ⅡB T4	500	11,000	3	220/380	750

Model No.	방폭인증번호	방폭등급	Impeller size (mm)	Max Air Volume (㎥/h)	Power Consumption (W)	Phase (∮)	Volt (V)	Poles (P)
Model No.	방폭인증번호	방폭등급	Impeller size (mm)	50Hz	60Hz	50Hz	60Hz	Phase (∮)
DR-ExC DF20DSH	19-AV2BO-0549	Exd ⅡC T4	200	700	900	87	104	1
DR-ExC DF25DSH	19-AV2BO-0549	Exd ⅡC T4	250	1,280	1,540	95	113	1
DR-ExC DF30DSH	19-AV2BO-0549	Exd ⅡC T4	300	1,570	1,880	97	115	1
DR-ExC DF35DSH	19-AV2BO-0549	Exd ⅡC T4	350	2,340	2,820	112	133	1
DR-ExC DF40DSH	19-AV2BO-0549	Exd ⅡC T4	400	3,080	3,700	136	162	1

전문 상담을 통해 최적의 솔루션을 제안합니다
