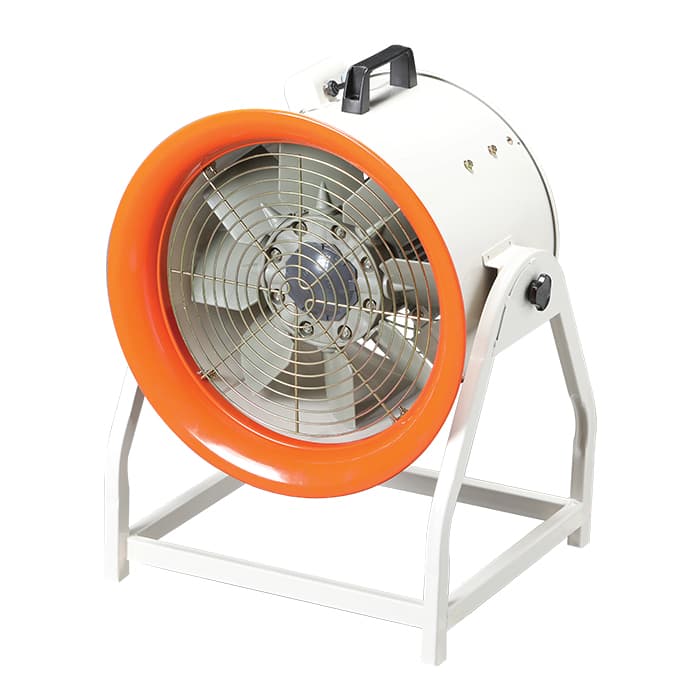

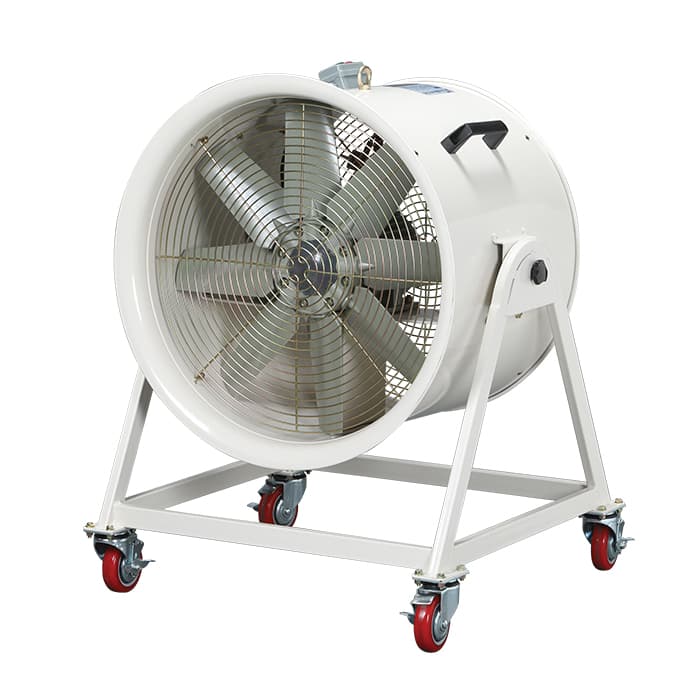

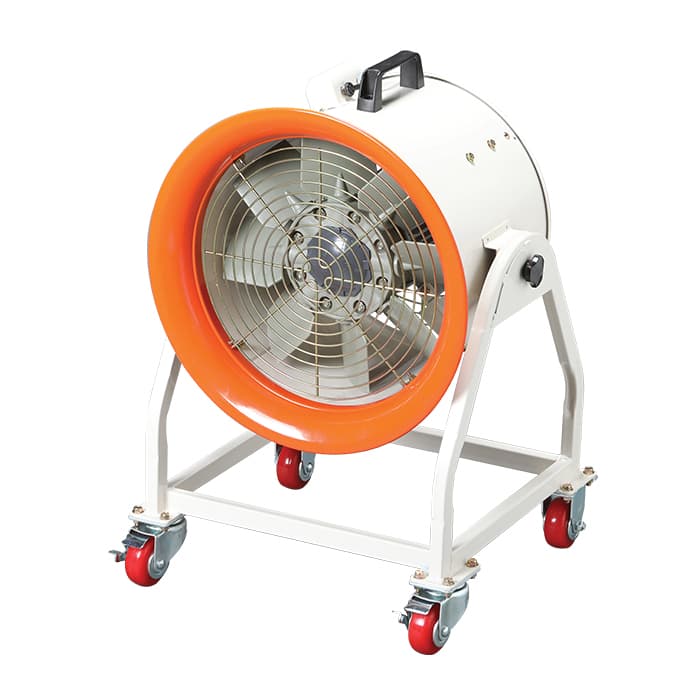

포터블팬

제품 특징

Model No.	Impeller size (mm)	Max Air Volume (㎥/h)	Static Pressure (mmAq)	Phase (∮)	Volt (V)	Poles (P)	Input (W)	Power Consumption (W)	Ampere (A)	RPM	Weight (kg)
DR-E200DS	Ø180	1,330	32	1	220	2	145	132	0.61	3,500	6.5
DR-E250DS	Ø230	2,800	36	1	220	2	375	325	1.34	3,320	8
DR-E300DS	Ø280	3,600	67	1	220	2	525	478	2.38	3,429	11.5
DR-E350DS	Ø330	5,650	80	1	220	2	800	730	3.36	3,443	15.5
DR-FP400DS	Ø370	5,800	35	1	220	4	470	460	2.14	1,681	18
DR-FP400DT	Ø370	5,800	35	3	220/380	4	470	422	2.1/1.18	1,700	18
DR-FP500DS	Ø470	10,500	48	1	220	4	1,300	1,180	2.96	1,664	24
DR-FP500DT	Ø470	10,500	48	3	220/380	4	1,300	1,060	5.4/3.02	1,680	24

Model No.	Impeller size (mm)	Max Air Volume (㎥/h)	Static Pressure (mmAq)	Phase (∮)	Volt (V)	Poles (P)	Input (W)	Power Consumption (W)	Ampere (A)	RPM	Weight (kg)
DR-E300DSA	Ø280	3,600	67	1	220	2	525	478	2.48	3,429	12
DR-E300DSB	Ø280	3,600	67	3	220/380	2	525	478	2.48	3,429	12

Model No.	Impeller size (mm)	Max Air Volume (㎥/h)	Static Pressure (mmAq)	Phase (∮)	Volt (V)	Poles (P)	Input (W)	Power Consumption (W)	Ampere (A)	RPM	Weight (kg)
DR-FP400DSB	Ø370	5,800	35	1	220	4	470	460	2.14	1,681	21
DR-FP400DTB	Ø370	5,800	35	3	220/380	4	470	422	2.1/1.18	1,700	21
DR-FP500DSB	Ø470	10,500	48	1	220	4	1,300	1,180	2.96	1,664	31
DR-FP500DTB	Ø470	10,500	48	3	220/380	4	1,300	1,060	5.4/3.02	1,680	31
DR-FP600DSB	Ø600	17,000	60	1	220	4	1,800	1,500	7.24	1,680	52
DR-FP600DTB	Ø600	17,000	65	3	220/380	4	1,800	1,350	5.2/2.92	1,700	52

전문 상담을 통해 최적의 솔루션을 제안합니다
