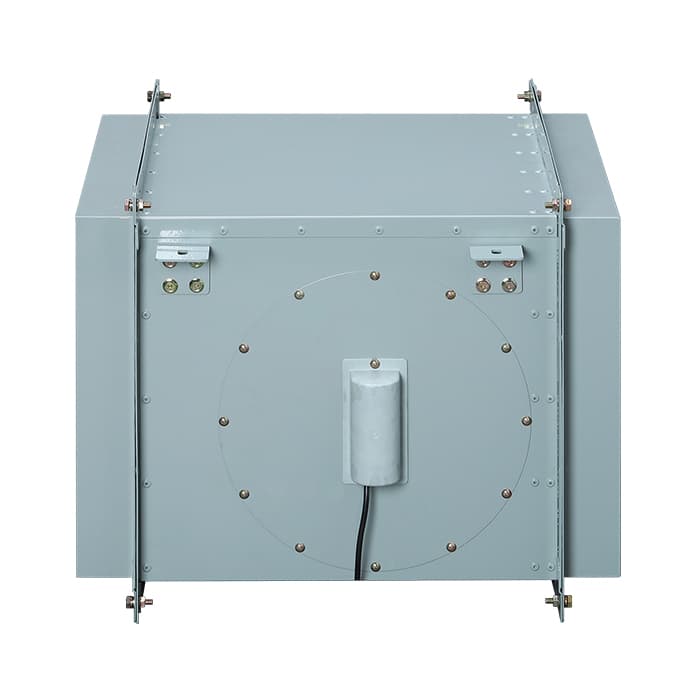

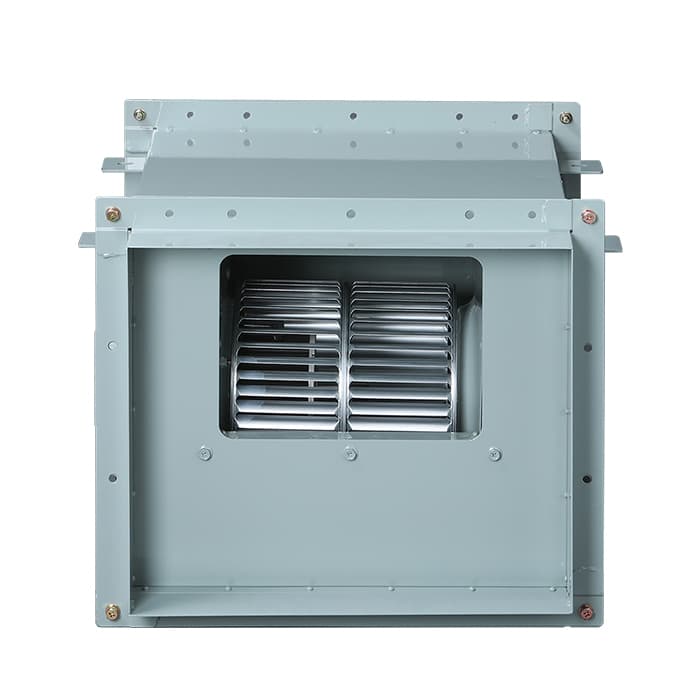

인라인팬

시로코 소음재부착

제품 특징

Model No.	Impeller size (mm)	Max Air Volume (㎥/h)	Static Pressure (mmAq)	Phase (∮)	Volt (V)	Poles (P)	Input (W)	Power Consumption (W)	Ampere (A)	Weight (kg)
DR-FID20DSV	Ø200X210	1,953	30	1	220	4	420	440	2	19
DR-FID20DTV	Ø200X210	1,953	30	3	220/380	4	420	385	1.4/0.8	19
DR-GID20DSV	Ø200X210	1,598	15	1	220	6	250	259	1.2	19
DR-GID20DTV	Ø200X210	1,598	15	3	220/380	6	250	189	1.05/0.5	19
DR-GID23DSV	Ø230X260	2,274	30	1	220	6	450	391	1.8	26
DR-GID23DTV	Ø230X260	2,274	30	3	220/380	6	450	501	1.3/1.6	26
DR-GID25DSV	Ø270X260	3,500	35	1	220	6	900	748	3.5	33
DR-GID25DTV	Ø270X260	3,500	35	3	220/380	6	900	771	3/1.8	33
DR-GID30FSV	Ø300X300	6,600	50	1	220	6	1,100	1,440	6.7	51
DR-GID30FTV	Ø300X300	6,600	50	3	220/380	6	1,100	1,485	4.7/3.0	51
DR-GID38FTV	Ø330X330	8,500	66	3	220/380	6	2,200	2,165	8.9/5.0	64
DR-HID38FSV	Ø380X300	7,250	43	1	220	8	1,500	1,650	8.2	66
DR-HID38FTV	Ø380X300	7,250	43	3	220/380	8	1,500	1,600	5.4/2.9	66
DR-GID40FTV	Ø380X300	11,000	84	3	220/380	6	4,500	4,330	15.3/8.5	66

전문 상담을 통해 최적의 솔루션을 제안합니다
