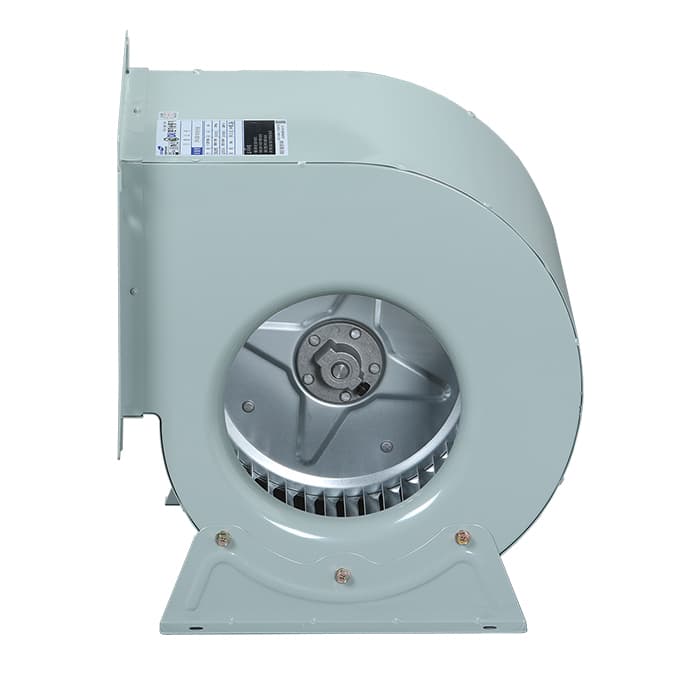

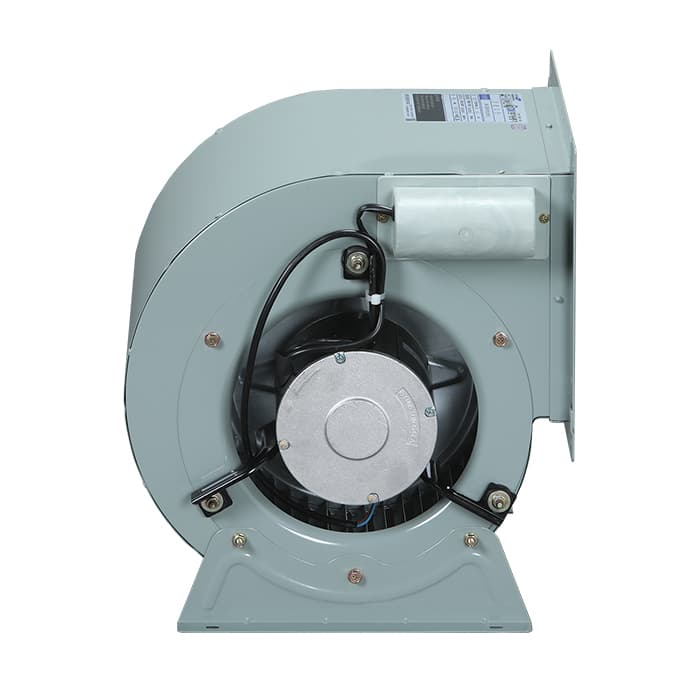

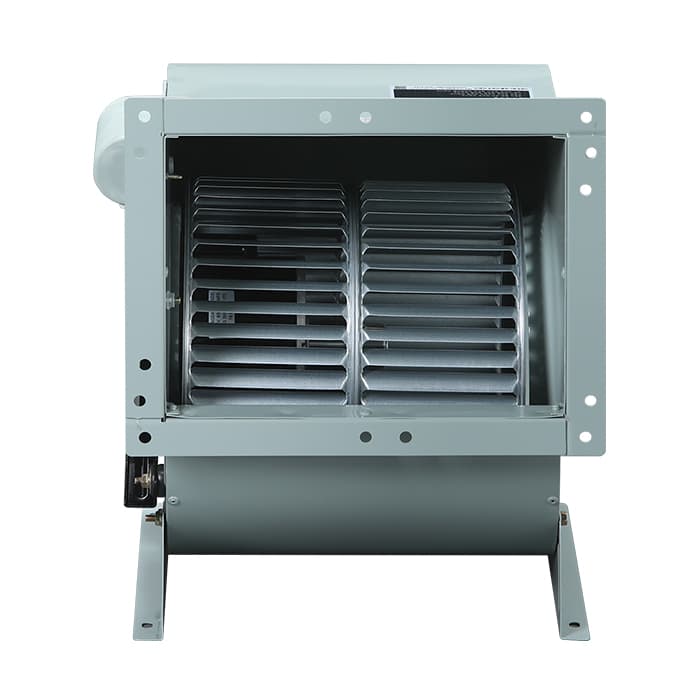

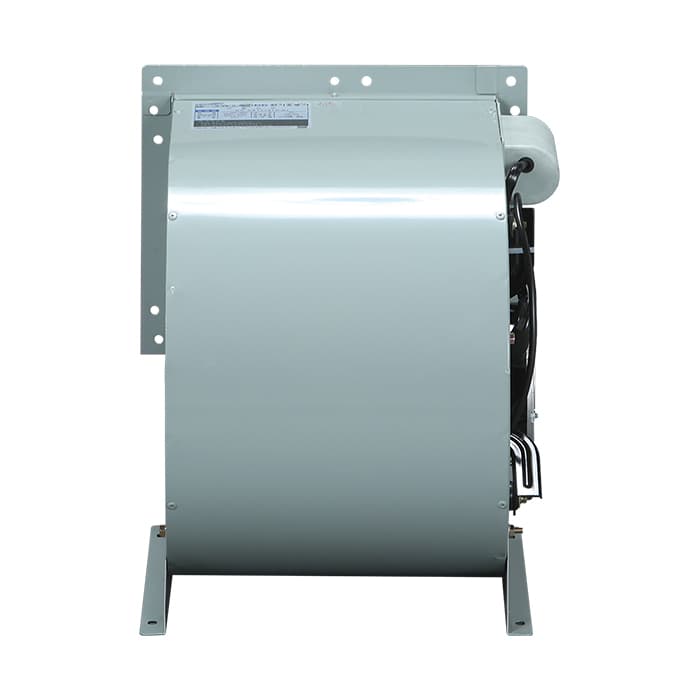

양흡입팬

제품 특징

Model No.	Impeller size(mm)	Max Air Volume (㎥/h)	Static Pressure (mmAq)	Phase (∮)	Volt (V)	Poles (P)	Input (W)	Power Consumption (W)	Ampere (A)	Weight (kg)
DR-FS0808(4극)	Ø200X210	1,960	32	1	220	4	420	456	2.1	14
DR-FT0808(4극)	Ø200X210	1,960	32	3	220/380	4	420	331	1.6/0.9	14
DR-DS0808(6극)	Ø200X210	1,500	15	1	220	6	250	206	1	14
DR-DT0808(6극)	Ø200X210	1,500	15	3	220/380	6	250	189	1.05/0.6	14
DR-DS0910	Ø230X260	2,100	32	1	220	6	450	487	2.2	16
DR-DT0910	Ø230X260	2,100	32	3	220/380	6	450	298	1.4/0.8	16
DR-DS1010	Ø270X260	3,800	35	1	220	6	900	815	3.9	20
DR-DT1010	Ø270X260	3,800	35	3	220/380	6	900	721	3.2/2.0	20
DR-DS1212	Ø300X300	6,800	50	1	220	6	1,100	1,667	8	30
DR-DT1212	Ø300X300	6,800	50	3	220/380	6	1,100	1,280	6/3.4	30
DR-DT1313	Ø330X330	8,700	64	3	220/380	6	2,200	3,500	11.4/6.4	31
DR-HS1512	Ø380X300	7,600	47	1	220	8	1,500	1,768	8.9	45
DR-HT1512	Ø380X300	7,600	47	3	220/380	8	1,500	1,200	5.6/3.2	45
DR-DT1512	Ø380X300	10,748	85	3	220/380	6	3,500	3,263	15.4/8.8	45

전문 상담을 통해 최적의 솔루션을 제안합니다
